A better
Gemex system, for small belt transmissions (approx. 3 – 30 kW)
New Gemex

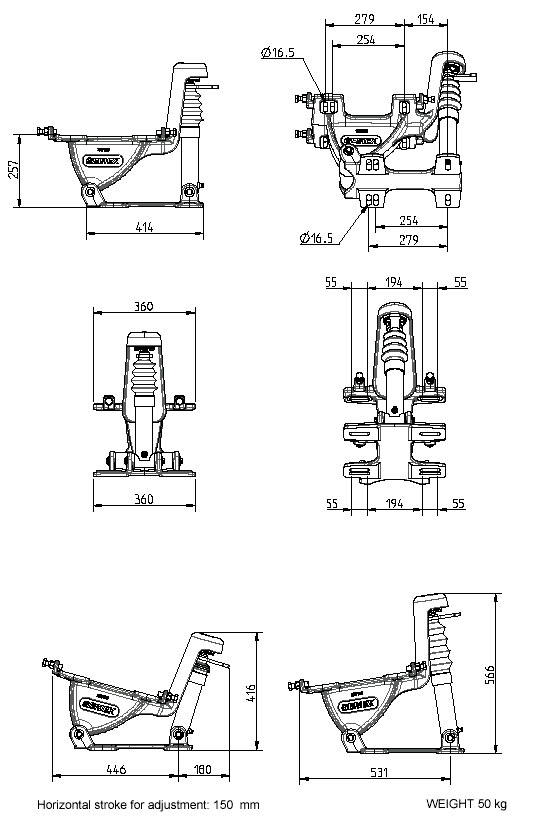

160-180H for motor sizes IEC 160 and IEC 180. With a simple adapter it
also fits motors with build size IEC 112 and IEC 132.

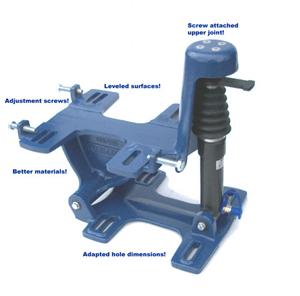

Easy installation,
adapted hole pattern, machine levelled surfaces and adjustment screws all
around.
-
160-180H has adjustment
screws at all four corners. This makes fine tuning of motor alignment at
installation easier.
-
Machine levelled
surfaces against motor feet also make alignment easier, and reduces the
need for shims at the installation.
-
The holes of the
bottom part are adapted motor feet dimensions - there is usually no need
for new attachments. These surfaces have also been levelled for perfect
contact with the bed.
-
The upper cylinder
joint is attached to the shelf with screws instead of welding. This makes
dismounting easier if the cylinder needs service or changing. You don't
have to disassemble the ball joint but can simply remove the whole cylinder
package!
-
The biggest change
is that 160-180H is now being casted in ductile iron, same as is already
being used on the models 200-400H. Ductile iron suits the operating condition
of a Gemex system. It has good resistance to corrosion and lacks inner
tensions.
|
